The centrifugal dewatering machine is developed according to the unified design standard of the former spinning department and combined with the actual use of different materials. The centrifugal dewatering machine has the advantages of reasonable design, simple structure, high efficiency, low wear and low noise, and can be widely applied. Yu: Washing and dehydrating food, vegetables, fruits, crops, plastics, hardware components, textiles and other materials.
First, the working principle:
Principle of centrifugal dewatering
Second, the machine structure and features:

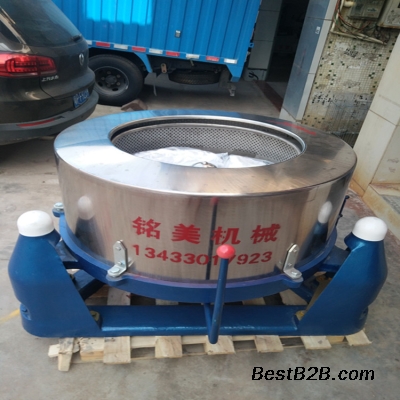

1. The dehydrator consists of three-legged machine base, 304 stainless steel barrel, motor, centrifugal clutch, brake and other components;
2. The outer casing and inner casing are all rounded with the national standard 304 stainless steel, the inner surface is hard and smooth, and it has the advantages of wear resistance, corrosion resistance and convenient cleaning;
3. The main shaft adopts high-quality solid steel and adopts double bearing combination. The bearing is located in the taper of the dewatering bin to ensure stable operation to reduce wear and save power.
4. Mingmei brand dewatering machine adopts independent motor, which is driven by triangular tape, equipped with centrifugal starting flange, mechanical slow start, high braking efficiency, manual brake can make the drum stop quickly, avoiding the spindle system Torque
5. The three-legged pendulum frame can avoid the vibration of the foot due to the imbalance of the load inside the drum; the outlet pipe can be connected to the water pipe and the sink under the base
