CSB-100k称重传感器

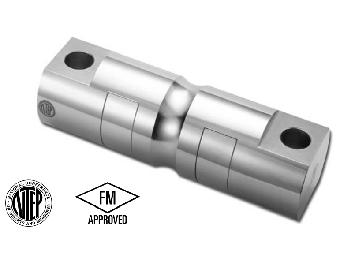

CSB圆柱式双剪切梁称重传感器
概述
The double-ended mounting provides good restraint for possible movement of tanks and, in many cases, eliminates the need for check rods. The shear beam design gives excellent performance for high capacity loading. The cylindrical construction provides easy installation with simple loading features. CSB is constructed of alloy steel and is fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity.
特性
1. 量程：5k-150k lbs
2. 中心负载双剪切梁设计
3. 自由水平移动
4. 侧载灵敏
5. 化学镀镍合金工具钢
6. 精度：NTEP Class lllL 10000
应用
1. 汽车衡/轨道衡
2. 筒仓/料斗/罐体称重
3. 叉车称重
参数
SPECIFICATIONS
PARAMETER VALUE UNIT
NTEP/OIML accuracy class NTEP IIIL Non-Approved
Maximum no. of intervals (n) 10000 multiple*
Y = Emax/Vmin 14000 5000 Maximum available
Standard capacities (Emax) 5k, 10k, 20k, 30k, 40k, 50k, 60k, 100k, 150k lbs
Rated output—R.O. 3.0 mV/V
Rated output tolerance 0.25 ±% of rated output
Zero balance 1 ±% of rated output
Non-linearity 0.025 ±% of rated output
Hysteresis 0.025 ±% of rated output
Non-repeatability .02 ±% of rated output
Creep error (20 minutes) 0.030 ±% of rated output
Zero return (20 minutes) 0.030 ±% of rated output
Temperature effect on min. dead load output 0.0010 0.0026 ±% of rated output/°C
Temperature effect on sensitivity 0.0010 0.0015 ±% of applied load/°C
Compensated temperature range –10 to +40 °C
Operating temperature range –20 to +60 °C
Safe overload 150 % of R.C.
Ultimate overload 300 % of R.C.
